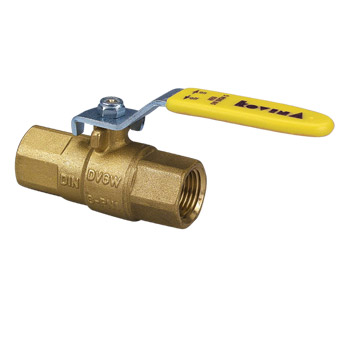

with steer level
with steel T-handle
These valves are also suitable für general usage (also for other mediums - oil, water, air ...) due to standard constructionn design. In this case, the temperature range is from -20°C up to +110°C (water 0°C up to 110°C) and working pressure up to max. 2500 kPa (25 bar) - according to the PN-T diagram.
In case of fire, ball valves that have integrated TAS cartridge are sealed up to 925°C for at least one hour.

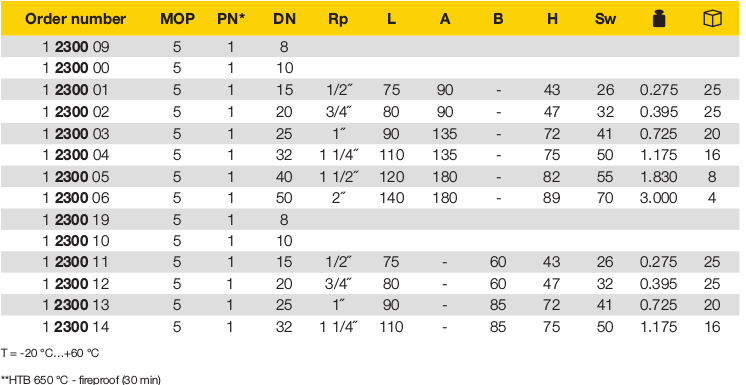

Code | Description |
---|---|
1230009 | Ball Valve for gas 2300 DN 8 |
M1230000 | Ball Valve for gas 2300 DN 10 |
M1230001 | Ball Valve for gas 2300 DN 15 |
M1230002 | Ball Valve for gas 2300 DN 20 |
M1230003 | Ball Valve for gas 2300 DN 25 |
M1230004 | Ball Valve for gas 2300 DN 32 |
M1230005 | Ball Valve for gas 2300 DN 40 |
M1230006 | Ball Valve for gas 2300 DN 50 |
1230019 | Ball Valve for gas 2300 DN 8 |
M1230010 | Ball Valve for gas 2300 DN 10 |
M1230011 | Ball Valve for gas 2300 DN 15 |
M1230012 | Ball Valve for gas 2300 DN 20 |
M1230013 | Ball Valve for gas 2300 DN 25 |
M1230014 | Ball Valve for gas 2300 DN 32 |
