7761 RD

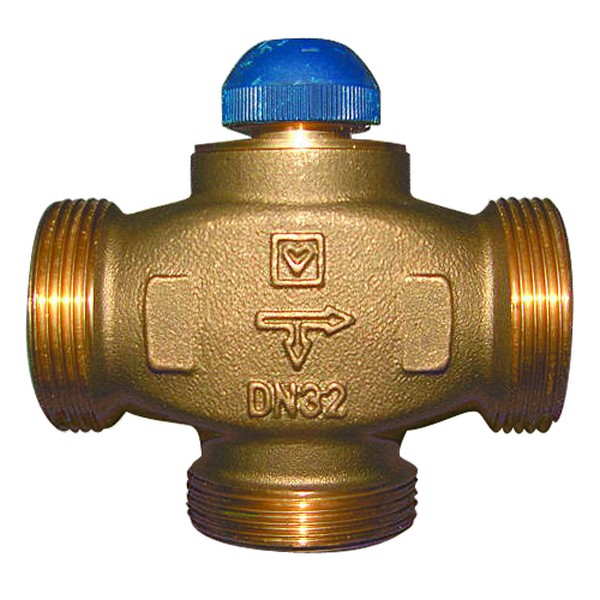

CALIS-TS-RD Three-Port Valve for thermostatic operation
Technical data:
-
Max. operating temperature: 120 °C
-
Min. operating temperature: 2 °C
-
Max. operating pressure: DN 15, 20 10 bar
-
Max. operating pressure: DN 25, 32 16 bar
-
Max. pressure drop for thermostatic operation: 0.2 bar
Materials:
-
Valve body: brass (CC754S-GM)
-
Spindle: stainless steel
-
Seals: EPDM
-
Upper part: cover blue plastic cap
-
Thermostat threaded connection: M 28 x 1.5.
Product List
| Code | Description |
|---|---|
| M1776138 | CALIS-TS-RD Three-Port Valve for thermostatic operation DN 15 |
| M1776139 | CALIS-TS-RD Three-Port Valve for thermostatic operation DN 20 |
| M1776140 | CALIS-TS-RD Three-Port Valve for thermostatic operation DN 25 |
| M1776141 | CALIS-TS-RD Three-Port Valve for thermostatic operation DN 32 |
-
