Feel the Water
7760

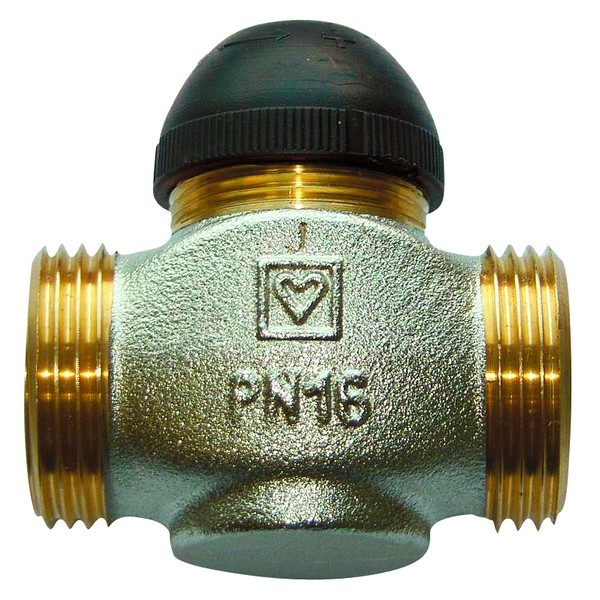

Thermostatic Valve
Technical data:
-
max. operating temperature: 120°C
-
min. operating temperature: -20°C
-
max. operating pressure: 16 bar
Material:
-
Body: DZR

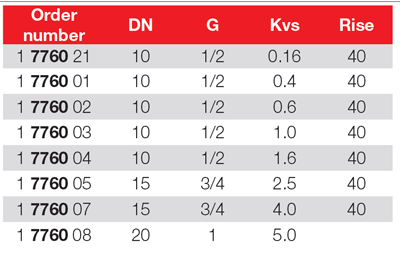

Product List
| Code | Description |
|---|---|
| M 1776 02 | Thermostatic Valve DN 10 - kv=0.16 |
| M 1776 00 | Thermostatic Valve DN 10 - kv=0.4 |
| M 1776 00 | Thermostatic Valve DN 10 - kv=0.6 |
| M 1776 00 | Thermostatic Valve DN 10 - kv=1.00 |
| M 1776 00 | Thermostatic Valve DN 10 - kv=1.6 |
| M 1776 00 | Thermostatic Valve DN 15 - kv=2.5 |
| M 1776 00 | Thermostatic Valve DN 15 - kv=4.0 |
| M 1776 00 | Thermostatic Valve DN 20 - kv=5.0 |
