Feel the Water
F 4037

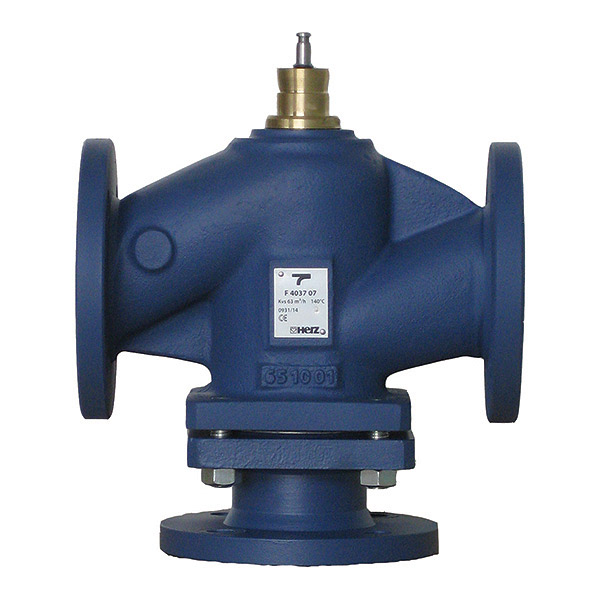

Three-Port Flanged Valve
Technical data:
-
Max. operating pressure: 16 bar
-
Min. operating temperature: 5 °C
-
Max. operating temperature: 140 °C
-
Valve curve characteristic: equal percentage
-
Type of connection: Flanges (EN 1092-2)
-
Valve body material: GG 25
-
Sealing material: FPM (ISO1629)
-
Valve seat material: WN1.4021
-
Valve cone material: up to DN 50 WN1.4021 from DN 65 to DN 150 GG 25/WN1.4021
-
Stem material: WN1.4057

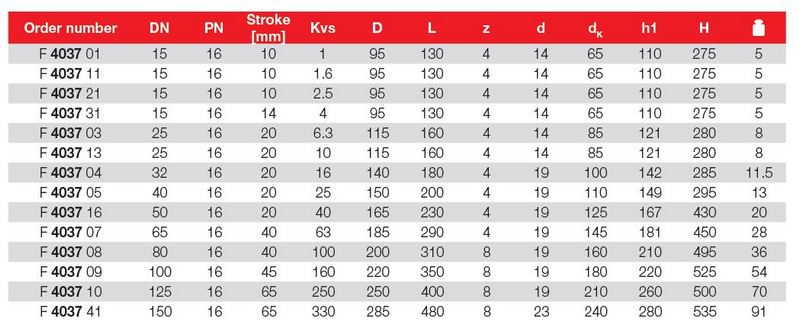

Product List
| Code | Description |
|---|---|
| MF403701 | Three-Port Flanged Valve |
| MF403711 | Three-Port Flanged Valve |
| MF403721 | Three-Port Flanged Valve |
| MF403731 | Three-Port Flanged Valve |
| MF403703 | Three-Port Flanged Valve |
| MF403713 | Three-Port Flanged Valve |
| MF403704 | Three-Port Flanged Valve |
| MF403705 | Three-Port Flanged Valve |
| MF403716 | Three-Port Flanged Valve |
| MF403707 | Three-Port Flanged Valve |
| MF403708 | Three-Port Flanged Valve |
| MF403709 | Three-Port Flanged Valve |
| MF403710 | Three-Port Flanged Valve |
| MF403741 | Three-Port Flanged Valve |
