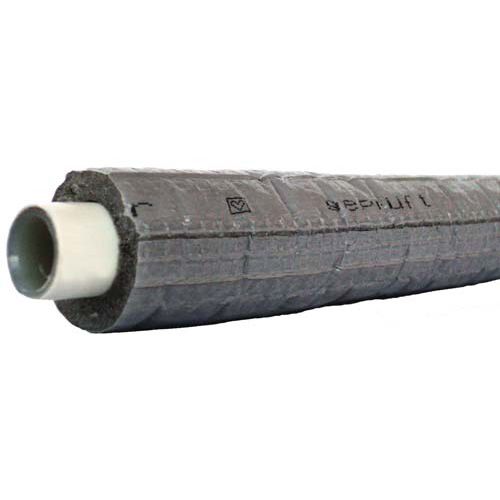

Plastic Composite Pipe PE-RT, with Insulation
Heating and plumbing pipes with heat-insulation from LDPE foam with PP coating. Thermal conductivity of 0.04 W/mK as per DIN EN 8497. Reaction to fire according to DIN 4102 B1. CFC and HCFC free. Water vapor diffusion number ≥ 6000 to 52 615 DSIN. Outer casing gray, black lettering.

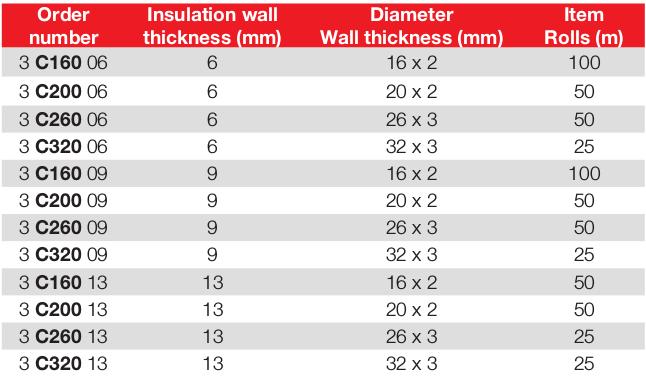

Product List
| Code | Description |
|---|---|
| M 3C16 00 | Plastic Composite Pipe PE-RT, with Insulation 16 x 2 mm diameter |
| M 3C20 00 | Plastic Composite Pipe PE-RT, with Insulation 20 x 2 mm diameter |
| M 3C26 00 | Plastic Composite Pipe PE-RT, with Insulation 26 x 3 mm diameter |
| M 3C32 00 | Plastic Composite Pipe PE-RT, with Insulation 32 x 3 mm diameter |
| M 3C16 00 | Plastic Composite Pipe PE-RT, with Insulation 16 x 2 mm diameter |
| M 3C20 00 | Plastic Composite Pipe PE-RT, with Insulation 20 x 2 mm diameter |
| M 3C26 00 | Plastic Composite Pipe PE-RT, with Insulation 26 x 3 mm diameter |
| M 3C32 00 | Plastic Composite Pipe PE-RT, with Insulation 32 x 3 mm diameter |
| M 3C16 01 | Plastic Composite Pipe PE-RT, with Insulation 16 x 2 mm diameter |
| M 3C20 01 | Plastic Composite Pipe PE-RT, with Insulation 20 x 2 mm diameter |
| M 3C26 01 | Plastic Composite Pipe PE-RT, with Insulation 26 x 3 mm diameter |
| M 3C32 01 | Plastic Composite Pipe PE-RT, with Insulation 32 x 3 mm diameter |
