4125 STRÖMAX-D

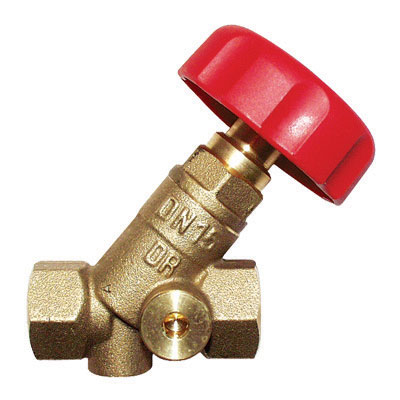

Inclined Shut-off Valve With Non-Rising Spindle
Technical Data
Max. operation temperature: 110°C
Max. operation pressure: 20 bar
Max. differential pressure on closed seat: 10 bar
Body: casted DZR brass CC752S
Upper part: DZR brass CW602N
Cone: DZR brass CW602N
Spindle brass CW617N
Sealing: EPDM
Hand wheel: Polyamide
Drain possibility: 1 4125 71-78
Product List
| Code | Description |
|---|---|
| M 1412 56 | Inclined Shut-off Valve With Non-Rising Spindle DN 15 |
| M 1412 56 | Inclined Shut-off Valve With Non-Rising Spindle DN 20 |
| M 1412 56 | Inclined Shut-off Valve With Non-Rising Spindle DN 25 |
| M 1412 56 | Inclined Shut-off Valve With Non-Rising Spindle DN 32 |
| M 1412 56 | Inclined Shut-off Valve With Non-Rising Spindle DN 40 |
| M 1412 56 | Inclined Shut-off Valve With Non-Rising Spindle DN 50 |
| M 1412 56 | Inclined Shut-off Valve With Non-Rising Spindle DN 65 |
| M 1412 56 | Inclined Shut-off Valve With Non-Rising Spindle DN 80 |
| M 1412 57 | Inclined Shut-off Valve With Non-Rising Spindle DN 15 |
| M 1412 57 | Inclined Shut-off Valve With Non-Rising Spindle DN 20 |
| M 1412 57 | Inclined Shut-off Valve With Non-Rising Spindle DN 25 |
| M 1412 57 | Inclined Shut-off Valve With Non-Rising Spindle DN 32 |
| M 1412 57 | Inclined Shut-off Valve With Non-Rising Spindle DN 40 |
| M 1412 57 | Inclined Shut-off Valve With Non-Rising Spindle DN 50 |
| M 1412 57 | Inclined Shut-off Valve With Non-Rising Spindle DN 65 |
| M 1412 57 | Inclined Shut-off Valve With Non-Rising Spindle DN 80 |
-
