HERZ ARMATUREN - Inclined Shut-off Valve With Rising Spindle
Feel the Water
Search

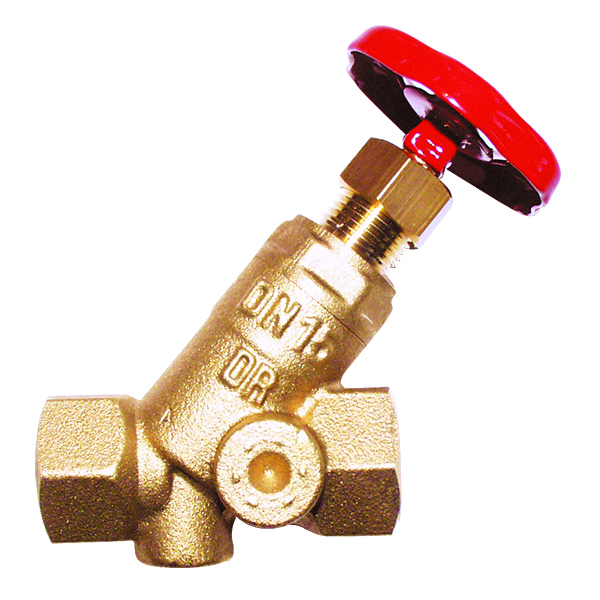

Inclined Shut-off Valve With Rising Spindle

4115 STRÖMAX

Inclined Shut-off Valve With Rising Spindle

Technical Data

Max. operation temperature: 110°C

Max. operation pressure: 20 bar

Max. differential pressure on closed seat: 10 bar

Body: casted DZR brass CC752S

Upper part: DZR brass CW602N

Cone: DZR brass CW602N

Spindle: brass CW617N

Sealing: EPDM

Hand wheel: sheet steel

Drain possibility: 1 4115 11- 18

Product List

Code Description
M1411508 Inclined Shut-off Valve With Rising Spindle DN 80
M1411518 Inclined Shut-off Valve With Rising Spindle DN 80
M1411517 Inclined Shut-off Valve With Rising Spindle DN 65
M1411516 Inclined Shut-off Valve With Rising Spindle DN 50
M1411515 Inclined Shut-off Valve With Rising Spindle DN 40
M1411514 Inclined Shut-off Valve With Rising Spindle DN 32
M1411513 Inclined Shut-off Valve With Rising Spindle DN 25
M1411512 Inclined Shut-off Valve With Rising Spindle DN 20
M1411511 Inclined Shut-off Valve With Rising Spindle DN 15
M1411500 Inclined Shut-off Valve With Rising Spindle DN 10
M1411507 Inclined Shut-off Valve With Rising Spindle DN 65
M1411506 Inclined Shut-off Valve With Rising Spindle DN 50
M1411505 Inclined Shut-off Valve With Rising Spindle DN 40
M1411504 Inclined Shut-off Valve With Rising Spindle DN 32
M1411503 Inclined Shut-off Valve With Rising Spindle DN 25
M1411502 Inclined Shut-off Valve With Rising Spindle DN 20
M1411501 Inclined Shut-off Valve With Rising Spindle DN 15
