4218 AGF

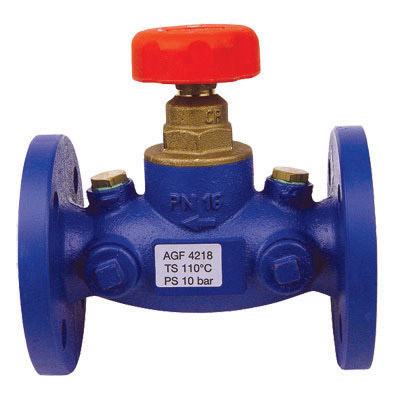

Shutoff Valve, flanged version 4218 AGF
STRÖMAX-AGF-Shutoff Valve, flanged version
Body made of cast iron GJL 250 according to EN 1561, flange according to EN 1092, PN 16; length according to ÖNORM EN-558-1, basic series 1, blue enamel coating.
Valve upper part made of brass. Non-rising spindle, spindle seal by means of double O-Ring. A permanently elastic soft seal is used as a seat seal.
Product List
| Code | Description |
|---|---|
| M1421853 | Shutoff Valve, flanged version DN 25 |
| M1421854 | Shutoff Valve, flanged version DN 32 |
| M1421855 | Shutoff Valve, flanged version DN 40 |
| M1421856 | Shutoff Valve, flanged version DN 50 |
| M1421857 | Shutoff Valve, flanged version DN 65 |
| M1421858 | Shutoff Valve, flanged version DN 80 |
-
