Technical data

• Operating pressure : depending on dimension, see table above
• Operating temperature range : -10 ̊C to 110 ̊C (water 0.5 ̊C - 95 ̊C, no steam)
• Medium : water, compressed air ... (non-aggressive mediums)
• Ethylene and propylene glycol can be mixed to a ratio of 25 - 50 vol. [%]

EPDM gaskets can be affected by mineral oil lubricants and thus lead to failure of the EPDM seals. Please refer to manufacturers documentation when using ethylene glycol products for freezing and corrosion protection

Assembly and maintenance

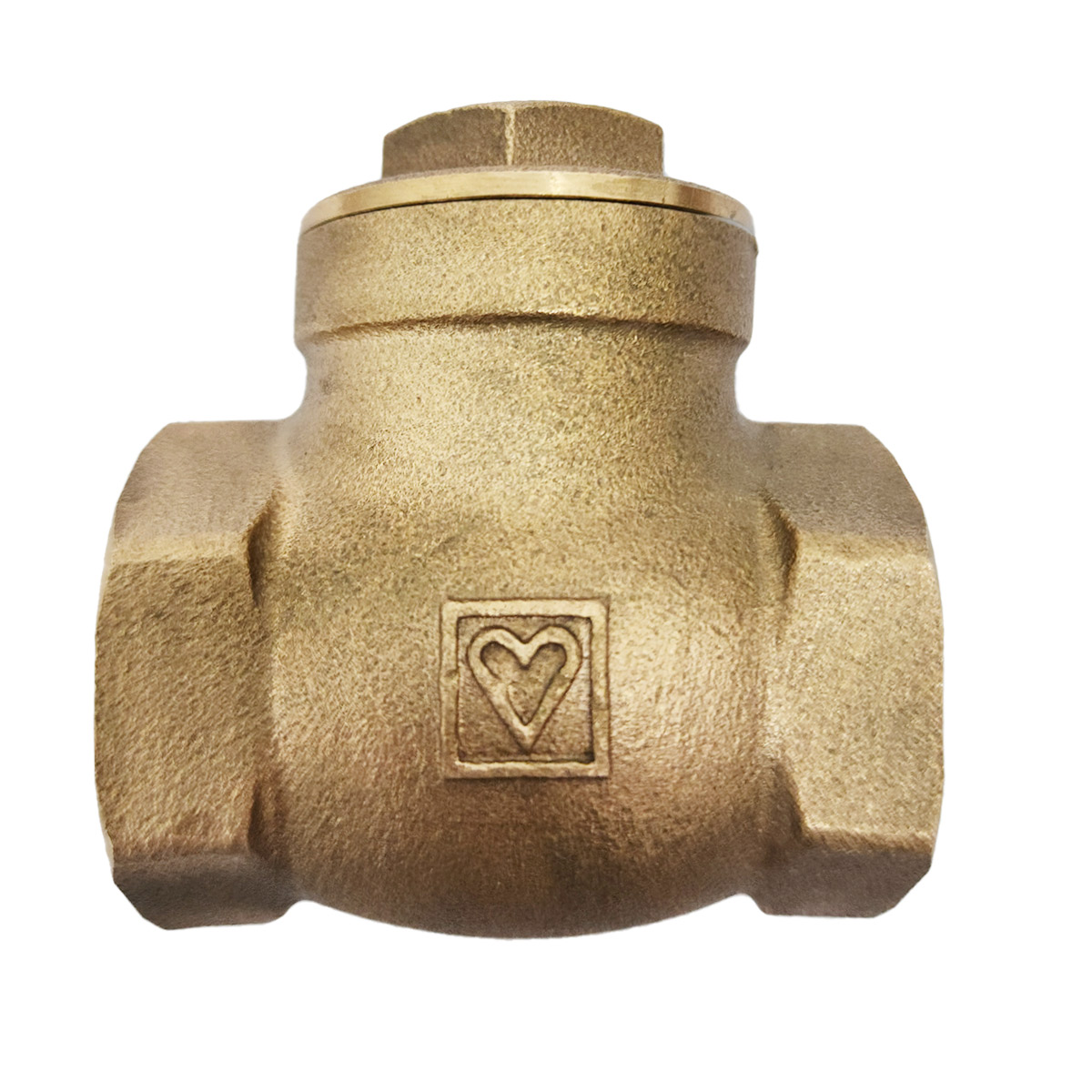

Check valves can be used in central heating systems, HVAC and chilled water systems, where the flow of media in just one direction on is required. The check valve can be used in any position and in all places where reliability and durability are expected. Flow direction is indicated with an arrow on the body. Sealing are designed for high and low pressure. The arrow on the body has to align with the direction of the flow. Check valves are designed to operate in fully open position with minimum head loss. Check valves are maintenance-free
