4113

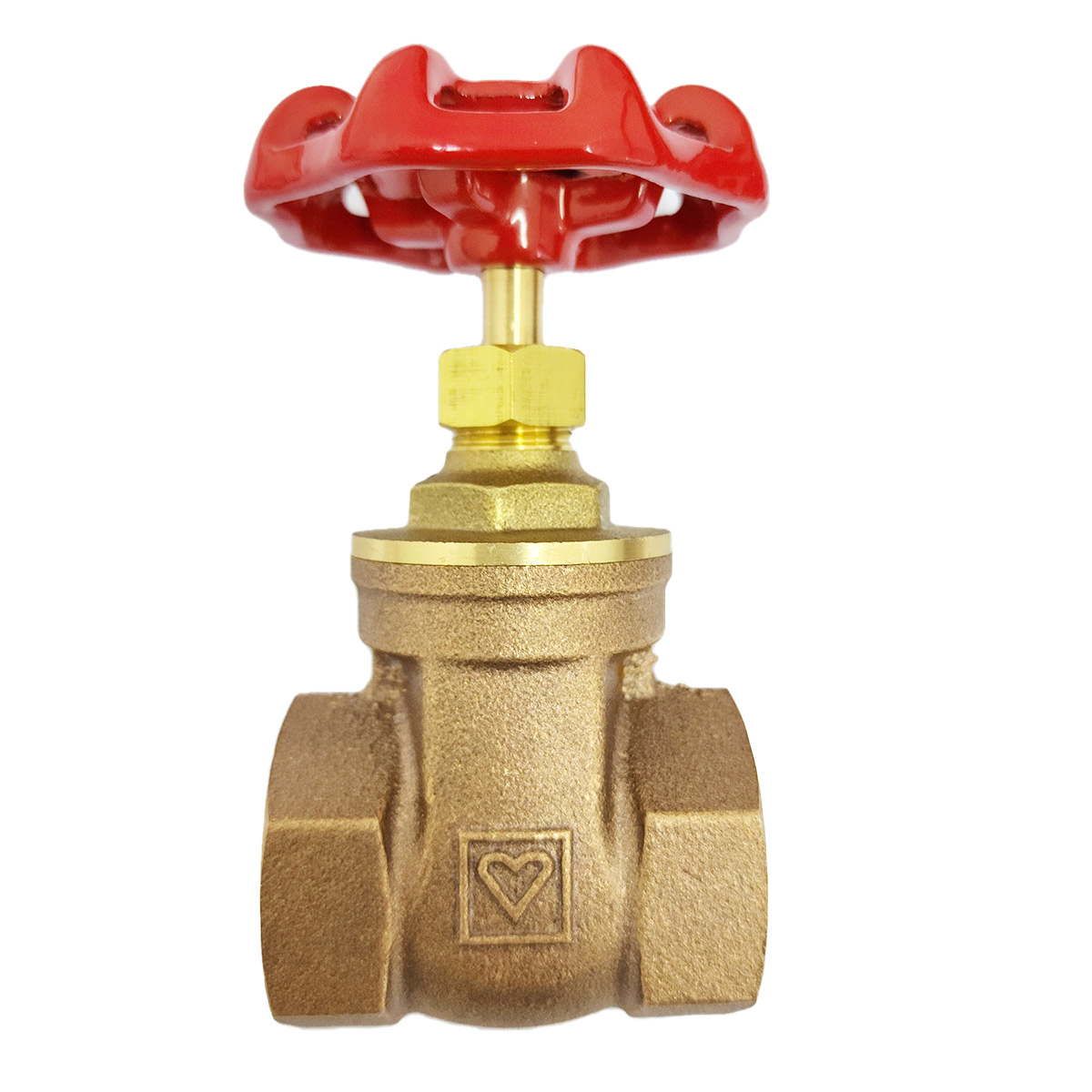

Gate Valve - wedge and double disc version

Material

Body : (1)Bronze
Cap : (2)Brass
Screw : Shaft(3)Brass
Packing : (4)PTFE
Gasket : (5)Brass
Handle : (6)Q235
Nut : (7)Q235

Product List

Code	Description	DN PN G
3411301	Gate Valve - wedge and double disc version DN15	15 20 G1/2
3411302	Gate Valve - wedge and double disc version DN20	20 20 G3/4
3411303	Gate Valve - wedge and double disc version DN25	25 20 G1
3411304	Gate Valve - wedge and double disc version DN32	32 20 G5/4
3411305	Gate Valve - wedge and double disc version DN40	40 20 G3/2
3411306	Gate Valve - wedge and double disc version DN50	50 20 G2

More description

Technical data

Max.operating pressure: 20bar
Max. operating temperature: 120°C
Connection thread: ISO7-1Rp
The use of ethyleneorpropyleneglycolina mixing ratio 25-50% is allowed

Field of application

For all nonaggressive fluids for domestic,commercial and industrial applications. Suitable for hot and cold water.

Sealing surfaces

Sealing takes place by means of pressing the valve discs without sliding onto the seat. The fine worked seal precision surface of the valve disc sguarantees denseness for the carried flow quantity, also when dirt particles have been deposited on the surfaces of the gate
