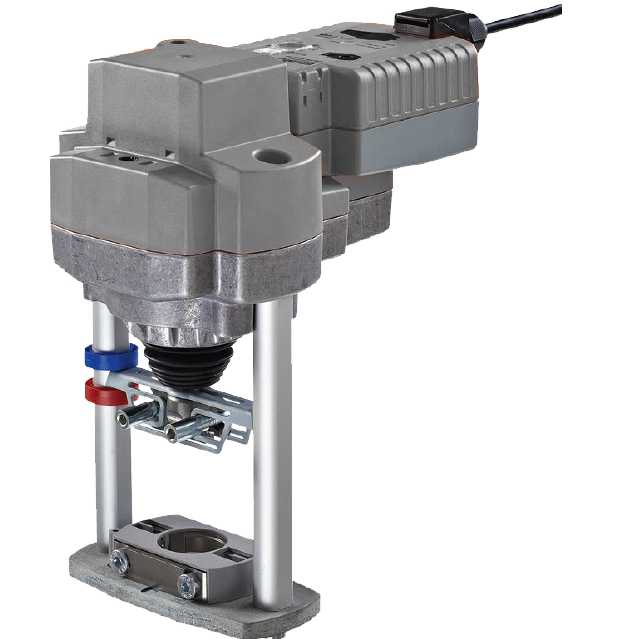

F 7713
Stellantrieb für 2- und 3-Weg-Hubventile, fail-safe, positioning force 2000 N
Actuation: continuous, control signal 2...10 V, positioning force 2000 N, stroke 32 mm, with position feedback signal 2 - 10 V, connection terminals with cable 1 m, operating time of motor 150s / 32mm, running time fail-safe 35s / 32mm, degree of protection IP54, manual adjustment with push button, power consumption in operation 5 W.
Product List
| Code | Description |
|
|---|---|---|
| F 7713 09 | Stellantrieb für 2- und 3-Weg-Hubventile, fail-safe, positioning force 2000 N |
|
