Balancing Valves for hydronic balancing in drinking water installations

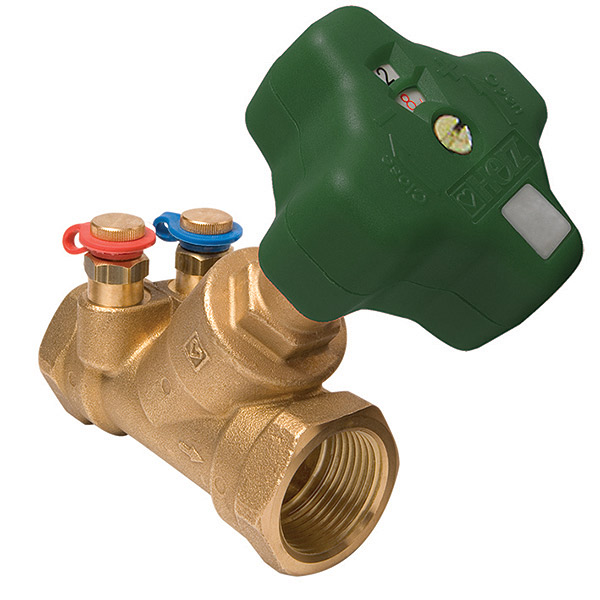

4017 M

Balancing Valves for hydronic balancing in drinking water installations

Technical data:

  • Max. operating temperature 85 °C at 10 bar

  • Max. operating pressure 20 bar at 20 °C

  • Max. differential pressure at closed valve 10 bar

  • body: DZR brass

  • non-rising stem sealed with Double-O-Ring

  • presetting through stroke limiting,

  • handwheel with presetting digital display

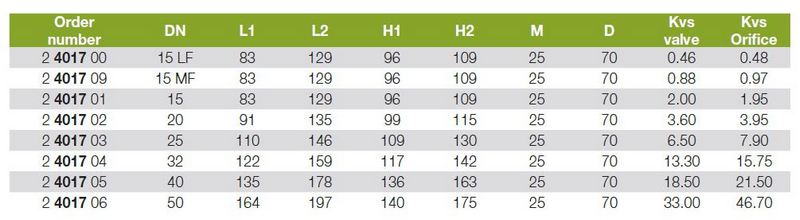

Product List

Code Description
M2401700 Balancing Valves for hydronic balancing in drinking water installations DN15LF
M2401709 Balancing Valves for hydronic balancing in drinking water installations DN15MF
M2401701 Balancing Valves for hydronic balancing in drinking water installations DN15
M2401702 Balancing Valves for hydronic balancing in drinking water installations DN20
M2401703 Balancing Valves for hydronic balancing in drinking water installations DN25
M2401704 Balancing Valves for hydronic balancing in drinking water installations DN32
M2401705 Balancing Valves for hydronic balancing in drinking water installations DN40
M2401706 Balancing Valves for hydronic balancing in drinking water installations DN50
More description
