Technical data:
Max. operating temperature: 80°C, short therm (max. 1h) 95°C
Max. operating pressure: 16 bar
Medium: potable water
Valve body: cast iron GJL 250 according to EN 1561
Valve coating: electrophoretic coating
Upper part made of DZR brass
O-Rings: EPDM
Code | Description |
---|---|

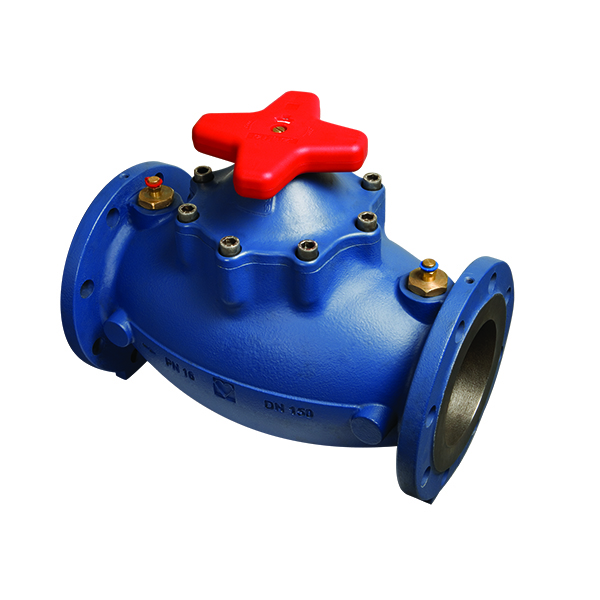

2421847 | Circuit Regulating Valve for domestic water |
